Specs and Dimensions
193.3 inches long on a 112.9-inch wheelbase, 9.1 inches of ground clearance, and 6,112 pounds at the curb.
Every published specification for the 2026 Jeep Recon Moab is on this page: dimensions, weights, capacities, interior room by row, off-road geometry, wheels and brakes, EPA range and efficiency, and warranty terms. For what the vehicle is and what it costs, start with the Recon overview; for standard equipment and options, the Moab trim and options page has the full list.
Key Numbers
Powertrain
Two electric drive modules, one per axle, 250 kW each. Combined output is 650 horsepower and 620 lb-ft of torque, delivered through a single-speed direct drive.
| Specification | Recon Moab |
|---|---|
| Drive modules | 250 kW front and 250 kW rear |
| Horsepower | 650 hp |
| Torque | 620 lb-ft |
| Battery | 400-volt, 100.5 kWh lithium-ion |
| Transmission | Single-speed direct drive |
| Transfer case | Single speed, full-time active 4WD, no low range |
| Rear axle | 15:1 final drive, electronic locking differential standard on the Moab |
| Front axle | 11:1 final drive, open differential |
| 0 to 60 mph | 3.6 seconds Sport, 3.8 seconds Auto |
| Top speed | 112 mph |
Outside
The Recon is 193.3 inches long, 74.8 inches wide without mirrors and 73.8 inches tall at the roof rail. Width at the mirrors is 87.4 inches, which is the figure that matters in a tight garage.
| Dimension | Recon Moab |
|---|---|
| Wheelbase | 112.9 in |
| Overall length | 193.3 in |
| Body width, mirrors folded out of the measurement | 74.8 in |
| Overall width at the mirrors | 87.4 in |
| Height at the roof rail | 73.8 in |
| Height at the antenna | 74.4 in |
| Ground clearance | 9.1 in |
| Approach angle | 33.8 degrees |
| Departure angle | 33.1 degrees |
| Breakover angle | 23.3 degrees |
| Turning diameter, curb to curb | 40.5 ft |
| Curb weight, Moab | 6,112 pounds |
| GVWR | 7,000 pounds |
| Drag coefficient | 0.404 |

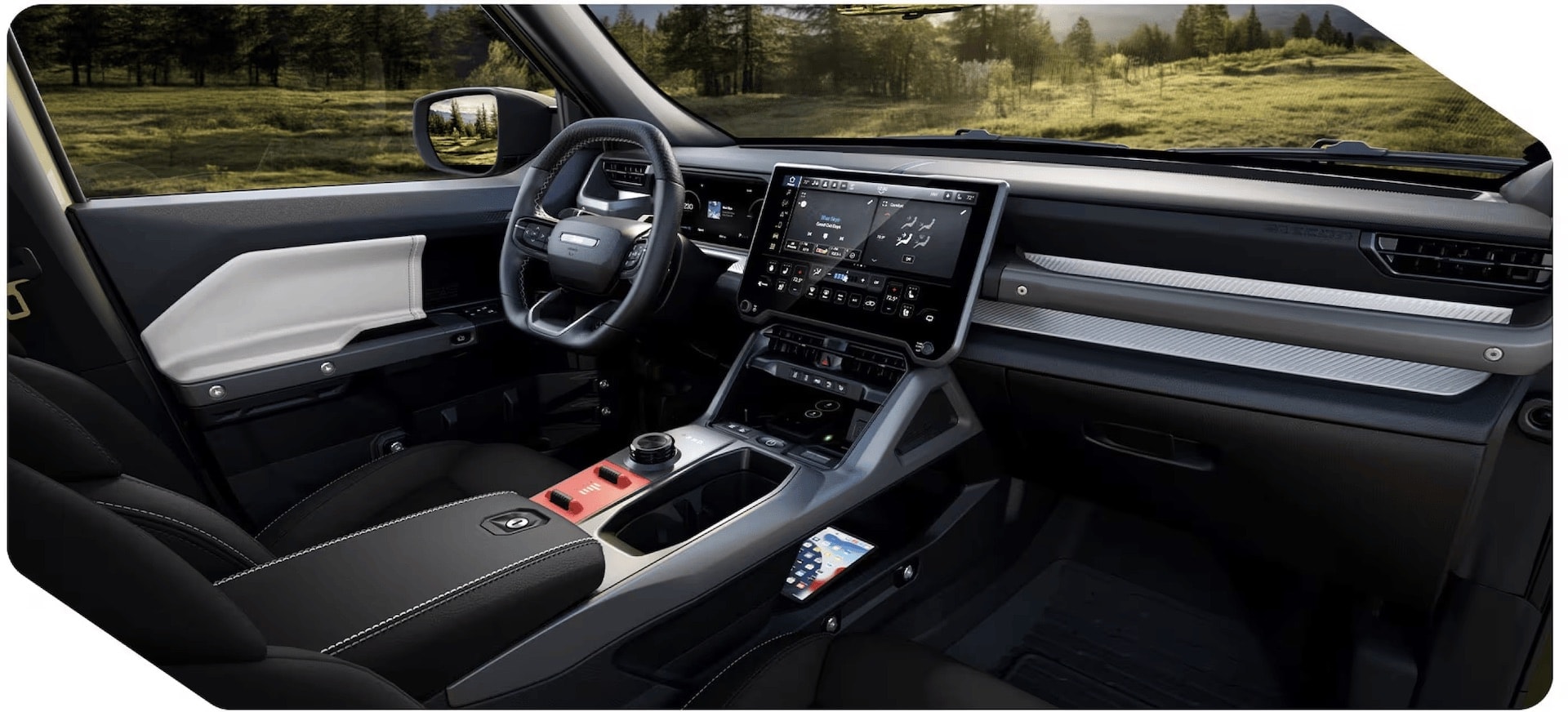

Inside
Two rows, five seats. Front headroom measures 42.3 inches against 40.6 in the second row, and front legroom 41.4 inches against 38.5. SAE interior passenger volume is 111.3 cubic feet.
| Measurement | Front row | Second row |
|---|---|---|
| Headroom | 42.3 in | 40.6 in |
| Legroom | 41.4 in | 38.5 in |
| Shoulder room | 58.6 in | 57.6 in |
| Total interior passenger volume | 111.3 cu ft, both rows | |
The cargo and interior page carries the full deep-dive on what those volumes hold.
What it carries
Trailer weight tops out at 3,300 pounds with the Trailer Tow Group fitted, and payload at 850 pounds. Cargo runs 30.3 cubic feet behind the second row and 65.9 with it folded, on top of a 3.0-cubic-foot front trunk.
| Capacity | Recon Moab |
|---|---|
| Maximum trailer weight, properly equipped with the Trailer Tow Group | 3,300 lbs |
| Payload | 850 pounds |
| Cargo behind the second row | 30.3 cu ft |
| Cargo behind the first row | 65.9 cu ft |
| Front trunk | 3.0 cu ft |
| Passenger and cargo volume combined | 141.5 cu ft |
Rolling stock
The Moab rides on 265/70R18 Nexen Roadian ATX all-terrain tires, a 33-inch-class fitment, mounted on 18 x 8.5-inch painted alloy wheels. Braking is by four vented discs.
| Component | Specification |
|---|---|
| Wheels | 18 x 8.5 in, fully painted Low Gloss, Luster Grey Metallic finish |
| Tires | 265/70R18 Nexen Roadian ATX all-terrain |
| Front brakes | 13.78 x 1.39 in vented disc, dual-piston floating caliper |
| Rear brakes | 13.78 x 1.10 in vented disc, single-piston floating caliper with electronic park brake |
| Suspension | Short-long arm front, integral link rear |
| Spare | Full-size, rear-mounted on the swing gate |
Range
One drivetrain means one EPA rating: 222 miles of combined range at 71 MPGe (fueleconomy.gov). The city figure is higher than the highway figure, which is normal for an electric vehicle and unusual for anything else.
| Drivetrain | City | Highway | Combined |
|---|---|---|---|
| 4WD, EPA range in miles | 250 | 196 | 222 |
| 4WD, MPGe | 80 | 62 | 71 |
Equipment grid
One trim, so this grid answers a different question than usual: what is standard on the Moab, and what has to be added. S means standard, O means optional.
| Feature | Moab |
|---|---|
| 14.5-inch Uconnect 5 touchscreen | S |
| 12.3-inch digital cluster | S |
| Wireless Apple CarPlay and Android Auto | S |
| 11-speaker Alpine audio | S |
| Dual-zone automatic climate control | S |
| Dual-pane sunroof | S |
| Rear electronic locking differential | S |
| 33-inch all-terrain tires | S |
| Blind Spot Monitoring | S |
| Lane keep assist | S |
| Rear cross-traffic alert | S |
| Surround-view camera | S |
| Sky One-Touch Power Top | O |
Safety
More than 170 safety and security features are standard by Jeep's own count, and the three it names first are Rough Road Cruise Control, Pedestrian Emergency Braking and Blind Spot Monitoring. The standard list also runs to lane keep assist, rear cross-traffic alert and a 360-degree camera.
More than 170 standard safety and security features are on the vehicle, with the battery pack behind a full suite of high-strength steel underbody shields. The technology and safety page lists the driver-assistance systems by name.
Coverage
| Coverage | Term |
|---|---|
| Basic limited warranty | 3 years or 36,000 miles |
| EV limited battery warranty | 8 years or 100,000 miles |
Intervals, service items and what an electric Jeep costs to keep are on the maintenance schedule page.
Translation
Numbers on a page decide almost nothing until you put them next to a garage door, a parking space and a road you actually drive.
| The number | What it means where you live |
|---|---|
| 87.4 in wide at the mirrors | Fold the mirrors on the way into a narrow single-bay door and it goes in without drama; leave them out and you will be measuring. |
| 193.3 in long | Comfortably inside a 20-foot bay, and short enough for the Route 1A lots at Rye and North Hampton in July, or the Odiorne Point State Park lot on a school-trip morning. |
| 40.5-ft turning diameter | A three-point turn on a Stratham or Newmarket side street, not a five-point one. |
| 9.1 in of ground clearance | Unploughed driveways and the ruts of a Seabrook dirt lane in March are a non-event, which is most of an NH Seacoast winter. |
| 6,112 pounds at the curb | Weight low in the floor. It plants itself in a crosswind on the Route 101 approaches or the open stretch running north toward Dover. |
| 38.5 in of second-row legroom | Adults sit behind adults without negotiation. Two child seats and a middle passenger fit across 57.6 inches of shoulder room. |
Questions
193.3 inches, on a 112.9-inch wheelbase. Body width is 74.8 inches and width at the mirrors is 87.4 inches.
Curb weight is 6,112 pounds and GVWR is 7,000 pounds. Payload is up to 850 pounds; Jeep publishes it rounded to the nearest 10 pounds.
Approach is 33.8 degrees, departure is 33.1 degrees and breakover is 23.3 degrees, all measured on the standard tire fitment. The off-road capability page covers ground clearance and what each angle decides.
Yes. At 193.3 inches long and 73.8 inches tall at the roof rail it clears a standard bay and a standard door height. The tight dimension is the 87.4 inches across the mirrors, so fold them on a narrow single-bay door.
18 x 8.5-inch painted alloy wheels wearing 265/70R18 Nexen Roadian ATX all-terrain tires, which is a 33-inch-class fitment. The spare is full-size and rear-mounted on the swing gate.
